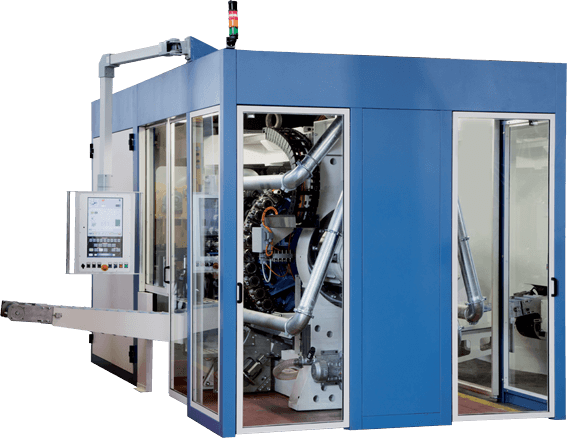

LARGHI 36 INNOVATING IS SIMPLE
INNOVATIVE
PATENTED DESIGN We have reinvented the Necking process thanks to SPL’s in-depth knowledge of the deformation process. The result is a highly innovative necking process which can boast 4 registered patents, each of which relates to key-concepts of the necking machine.
PRODUCTION
VERSATILITY Larghi 36 has been designed to meet nearly all the current production requirements of the market:
- 36 Stations;
- Can Diameter Range: 35 to 80 (mm);
- Can Lenght Range: 70 to 320 (mm).
POWER AND
STRENGTH
Larghi 36 offers powerful thrust of 15 tons; a value much higher than is currently available on the market.
ACCURACY AND RELIABILITY
The specific patented design allows you to get what you have never had before in a single necking machine:
– total absence of variation in length and size of the containers, whether they are produced with the machine at full load, or done as a single item (data certified on a D74 mm container);
– perfect alignment of Tool-Holder Plate vs Rotary Plate.
HIGH SPEED
PRODUCTION
A sturdy, simple and reliable mechanism guarantees a quick stroke change: the productivity of 200 cpm tested and guaranteed for a useful stroke of 100 (mm) alongside a second useful stroke of 150 (mm) at a speed of 160 cpm.
BALANCE
AND COMFORT
Larghi 36 was designed with extra focus on the weight balance. The perfect balancing of the moving parts minimises any vibration.
The technological characteristics of Larghi 36 make it one of the quietest machines on the market. This means greater acoustic comfort in the work environment.
Advanced electronic solutions and simple controls. SPL is introducing the first necking machine designed around the concept of: "one motion-one motor" for incredibly simple machine design. The controlling of the axles is done via a motion controller for outstanding motion precision. The operator interface is designed to be completely user-friendly and immediately understandable: the control panel is designed so as to get maximum simplification of the running of the machine.
SERVICING: FOREVER AND WHEREVER
The machine is equipped with a diagnostic system and remote control interface: the support team can monitor the system’s operating parameters at any time and in any area of the world. The system is equipped with a webcam for better quality interaction with the machine operating team. The machine software is able to perform a self-diagnostic and report any faults or malfunctions.
A COMBINATION OF
TECHNOLOGICAL INNOVATIONS
Mechanical grip: for machining of pieces, a mechanical fixing system is used which is equipped with electronic controls to guarantee maximum precision and stability of the piece and keep the surface of the finished product perfectly intact.

Reduced setting time: changing the dimensions has never been so easy.
Drastically reduced maintenance times both routine and non-routine.
